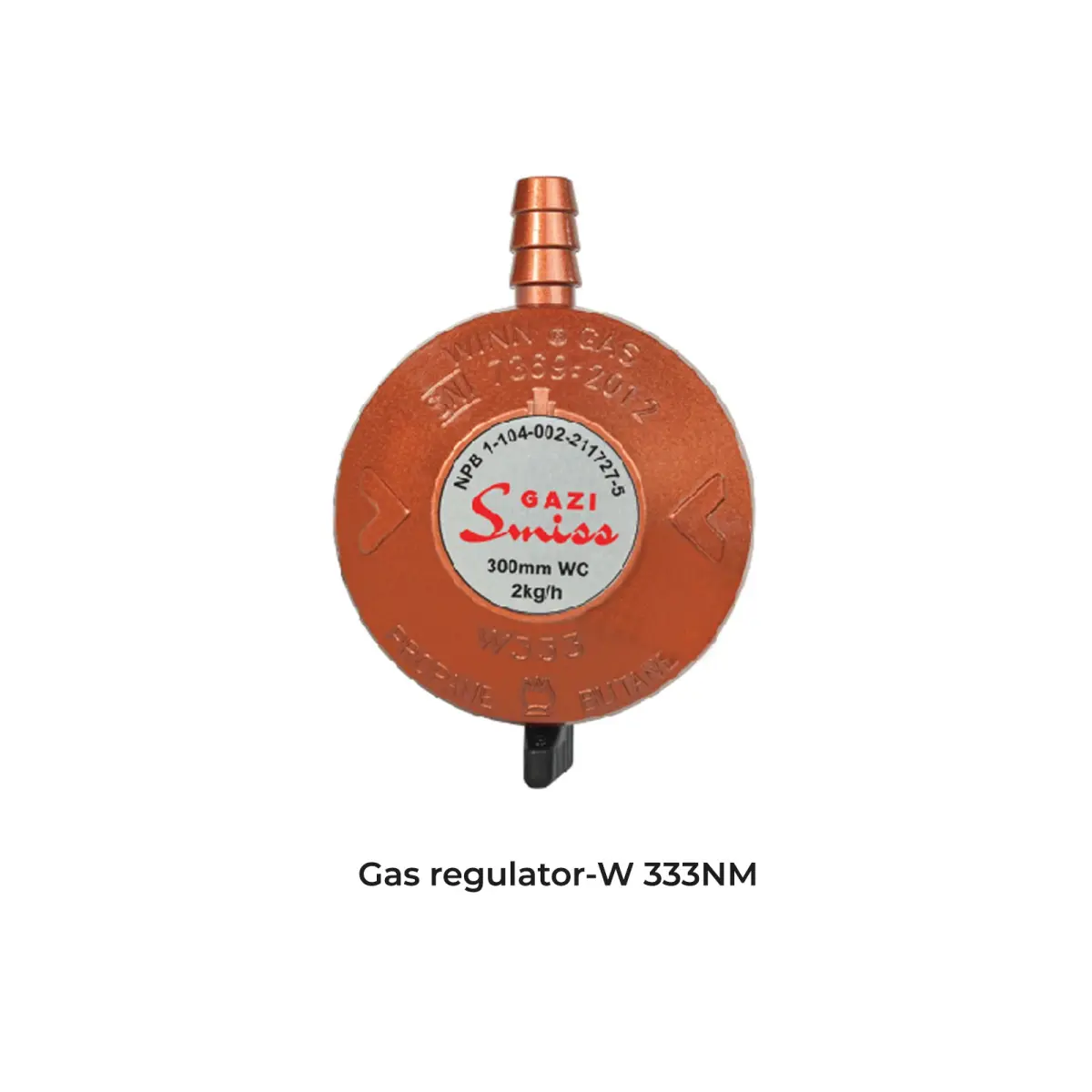

Gazi Smiss Low-Pressure LPG Gas Regulator (Model W-333NM).

Gazi Smiss Low-Pressure LPG Gas Regulator (Model W-333NM)

Type: Low-Pressure LPG Gas Regulator
Cylinder Size Compatibility: Fits standard 22mm gas cylinders
Maximum Inlet Pressure: 6 Bar
Operating Outlet Pressure: 300mm WC (Water Column)
Flow Capacity: 2 kg/h (kilograms per hour)
Gas Types: Formulated primarily for Propane and Butane gases

Mounting: Fit the regulator vertically over your 22mm cylinder valve structure with its black knob pointing downward.
Locking & Ignition: Lock it firmly into place, then switch the knob clockwise to the 9 o'clock position to secure it, and up to the 12 o'clock position to initiate the gas flow.
Shutdown: Turn the knob counterclockwise back to 9 o'clock to instantly cut off the active gas supply.
Removal: To release the regulator safely from the cylinder neck, turn the knob fully down to the 6 o'clock position. [1]
